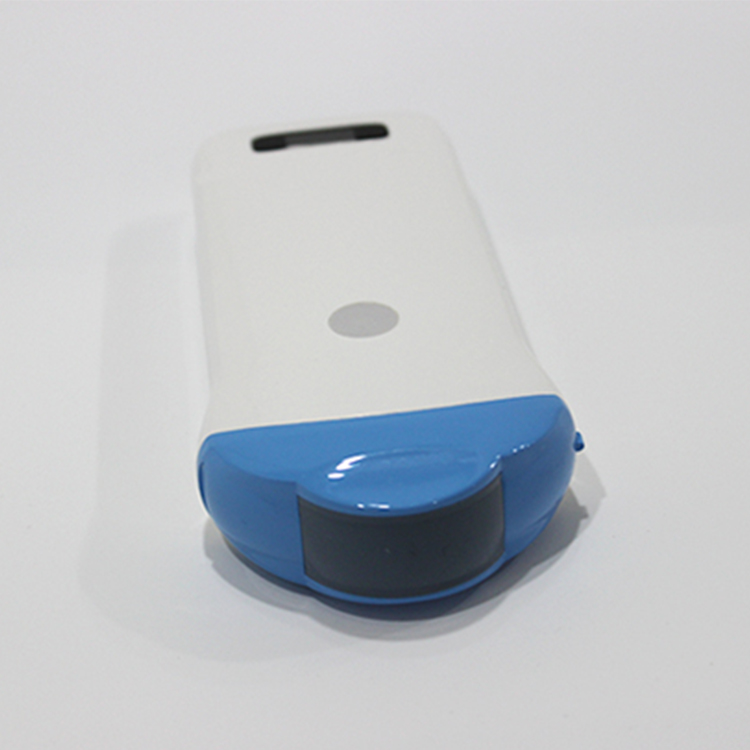

CProbe-5N5P Hot sale linear series probe type wireless mini ultrasound scanner medical ultrasound instruments

Specification
Scanning mode	Electronic array
Display mode	B, B/M
Probe element	128
Channel of RF circuit board	16/32/64
Probe frequency and scan depth, head width	L6C: 7.5MHz/10MHz, 20/40/60/100mm, 40mm L5C: 10MHz/14MHz, 20/30/40/55mm, 40mm L5PC/L5NC: 10MHz/14MHz, 20/30/40/55mm, 25mm
Image Adjust	BGain, TGC, DYN, Focus, Depth, Harmonic, Denoise, Color Gain, Steer, PRF
Cineplay	auto and manual, frames can set as 100/200/500/1000
Puncture assist function	the function of in-plane puncture guide line, out-of-plane puncture guide line, automatic blood vessel
Measure	Length, Area, Angle, heart rate, Obstetrics
Image save	jpg, avi and DICOM format
Image frame rate	18 frames / second
Battery working time	3~5 hours(according to different probe and whether keep scan)
Battery charge	by USB charge or wireless charge, take 2 hours
Dimension	156×60×20mm
Weight	220g~250g
Wifi type	802.11g/20MHz/5G/450Mbps
Working system	Apple iOS and Android, Windows
