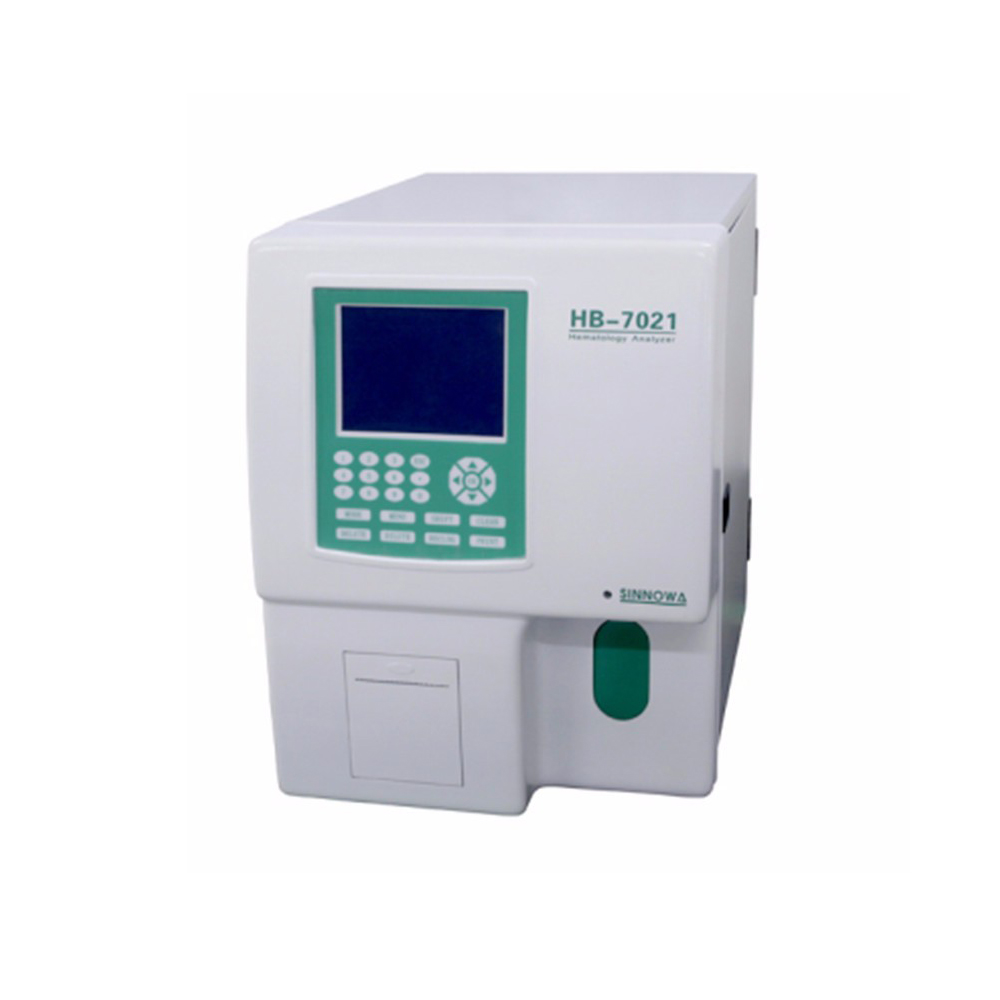

HB-7021 three-category automatic blood cell analyzer, testing 22 parameters, three categories of white blood cells, three histograms. The test results are fast and accurate, one-key operation, convenient and fast, stable performance and favorable price.
| Automatic | Fully Automatic |
| Throughput | 60 tests/hr |
| Assay Items | 22 parameters, 3 parts differential of WBC |
| Sample Volume | 13ul (whole blood), 20ul (prediluted blood) |
| Measuring Principle | Electro-impedance, photometric analysis |
| Parameter | WBC LY LY% MO MO% GR GR% |
| RBC HGB HCT MCV RDW-SD RDW-CV MCH MCHC | |
| PLT MPV PCT PDW | |
| WBC histograms RBC histograms PLT histograms | |
| Linearity Range | WBC: 0.0-99.9 (X 109/L) RBC: 0.0-9.99 (X 1012/L) |
| HGB: 0.0-300 (g/L) PLT: 0-999 (X 109/L) | |
| Accuracy (CV%) | WBC≤ 2.0% RBC ≤1.5% PCT ≤3.0% |
| PLT≤ 5.0% HGB ≤1.5% MPV ≤3.0% | |
| HCT ≤2.0% MCV≤ 1.0% PDW≤ 3.0% | |
| MCH≤ 2.0% MCHC≤ 2.0% | |
| Display | LCD |
| Storage | 200,000 results including histograms |
| Output | One RS232, one PS/2 and two USB. Available for LIS |
| Printer | Built-in thermal printer, USB to external printer (optional) |
| Data Input | Keypad (mouse and keyboard available) |
| QC | Automatically calculates X, SD,CV% and saves data |
| Language | English and Spanish. Other language on request |
| Power Supply | AC 110V 60Hz or 220V 50Hz |
| Dimension | 43cm*32cm*50.5cm |
| Weight | 20kg |
