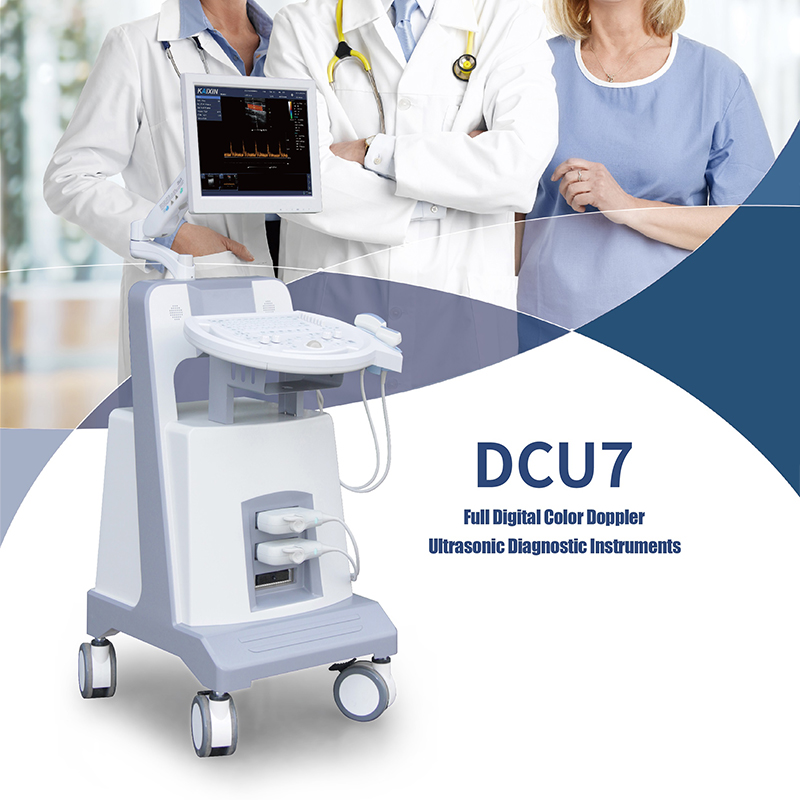

The Doppler Trolley Ultrasound machine adopts the latest ultrasonic imaging technologies such as variable aperture, logarithmic compression, dynamic filtering, dynamic focusing, TGC control, digital scanning and digital correlation processing, which makes the image focus area wider and the amount of information richer. Therefore, the image display is more clear, fine and stable, with high sensitivity and strong resolution.
B mode | 1. Gray scale mapping:≥15 |
2. Noise suppression:≥8 |
3. Frame correlation:≥8 |
4. Edge enhancement:≥8 |
5. Image enhancement:≥5 |
6. Space compound:Switch adjustable |
7. Scan density:High, middle, low |
8. Image flip:Up ,Down,Left,Right |
9. Maximum scanning depth:≥320mm |
Mmode | 1.Scan speed(SweepSleep):≥5 , adjustable |
2. Line average(LineAverage):≥8 |
PWmode | 1. SV size / location:SV size1.0–8.0mm , adjustable |
2. PRF:≥16 ,0.7kHz-9.3KHz , |
3. Scan speed(SweepSleep):≥5 , adjustable |
4. Correction angle(CorrectionAngle):-85°~85°,step length5° |
5. Spectrum flip:Switch adjustable |
6. Wall Filter:≥4, adjustable |
7. Doppler sound:≥20, adjustable |
Color/PDI mode | 1. PRF:≥15 ,0.6KHz –11.7KHz |
2. Color map(color map)≥4 kinds; |
3. Color related:≥8 |
4. post-treatment:≥4 |
