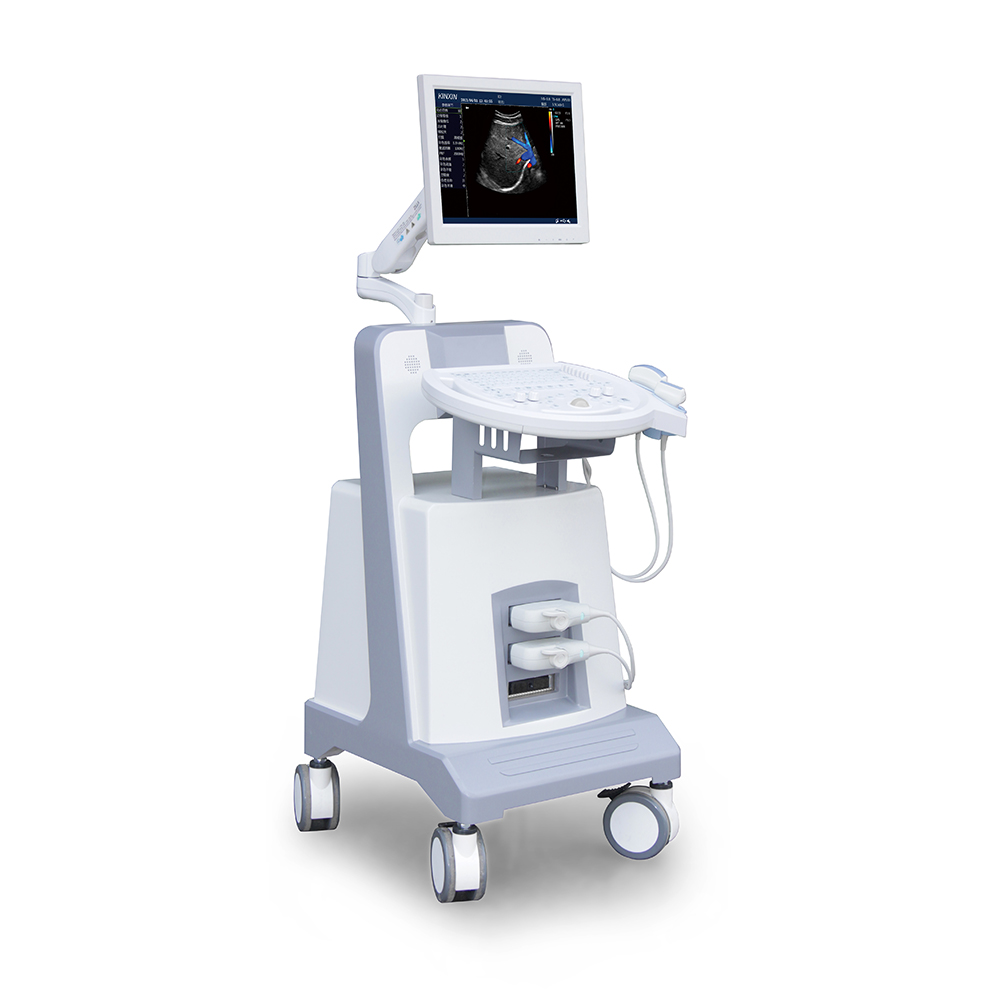

| Product Name | Medical Ultrasound Machine |
| Model Number | DUC-7 |
| Main unit size | 660(L)*500(H)*(1200-1400)(W)(mm) |
| Weigh | Only unit 35kg |
| Display | High resolution 15 "LCD display |
| Imaging mode | 1. B mode 2. M mode 3. Color(Color Doppler ) mode 4. PDI(Energy Doppler)mode 5. PW(Pulse Doppler)mode |
| B mode | |
| 1. Gray scale mapping：≥15 | |
| 2. Noise suppression：≥8 | |
| 3. Frame correlation：≥8 | |
| 4. Edge enhancement：≥8 | |
| 5. Image enhancement：≥5 | |
| 6. Space compound：Switch adjustable | |
| 7. Scan density：High, middle, low | |
| 8. Image flip：Up ,Down,Left,Right | |
| 9. Maximum scanning depth：≥320mm | |
| Mmode | |
| 1.Scan speed（SweepSleep）：≥5 , adjustable | |
| 2. Line average（LineAverage）：≥8 | |
| PWmode | |
| 1. SV size / location：SV size1.0–8.0mm , adjustable | |
| 2. PRF：≥16 ,0.7kHz-9.3KHz , | |
| 3. Scan speed（SweepSleep）：≥5 , adjustable | |
| 4. Correction angle（CorrectionAngle）：-85°~85°，step length5° | |
| 5. Spectrum flip：Switch adjustable | |
| 6. Wall Filter：≥4, adjustable | |
| 7. Doppler sound：≥20, adjustable | |
| Color/PDI mode | |
| 1. PRF：≥15 ，0.6KHz –11.7KHz | |
| 2. Color map（color map）≥4 kinds; | |
| 3. Color related：≥8 | |
| 4. post-treatment：≥4 | |
| Standard Configuration | |
| Main unit with a built-in 1T hard disk:1 pc | |
| Two probe sockets, automatically identify probe； | |
| 3.5MHzmulti-frequency abdomen convex probe(128 elements) | |
| 7.5MHz linear probe(128 elements) | |
| 6.5MHz TV probe(128 elements) | |
| Optional Configuration | |
| 7.5MHz linear probe | |
| 6.5MHz TV probe | |
