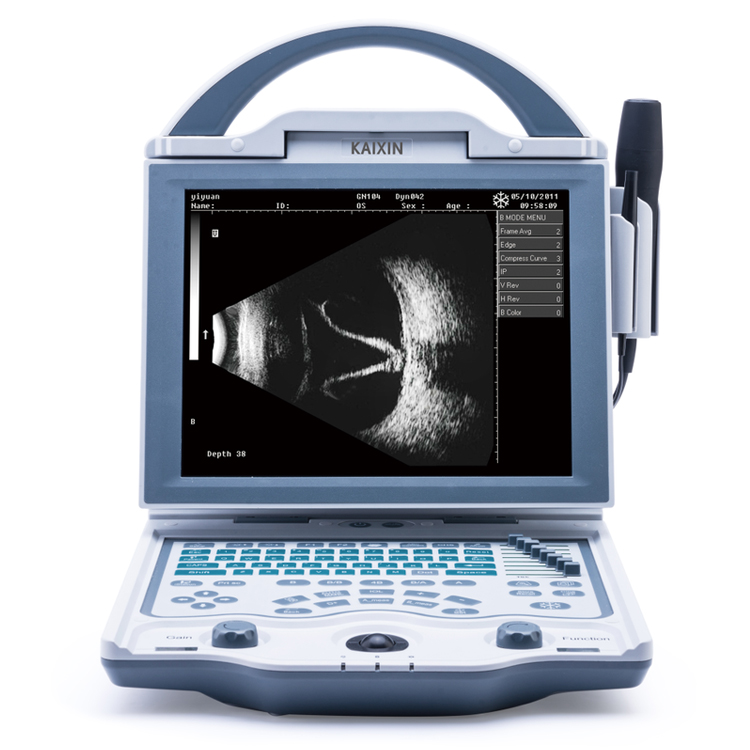

ODU5 Ultrasound A-Scan Biometer with Pachymeter

Ophthalmic A/B scan ODU5
General Parameter:
1. Adopt ARM9 Embedded Control Systems, FPGA signal processing system and elaborate selected ultrasonic hardware system..
2. 10.4 inch high resolution LCD screen.
3. Menu operation Language: Chinese/English.
4. Double probe sockets.
5. A mode probe: 10MHz, imported probe with fixation light.
6. B mode probe: 10MHz, imported transducer.
7. Display mode: B, B/B, 4B, B/A, A.
8. Gains range: 0--120dB.
9. Dynamic range: 30-100dB, visual and adjustable.
10. Gray: 256.
11. Intelligent TGC adjustment: 8 segments.
12. Build-in D disk: 4GB, save mass data, images, reports, etc.
13. Report function: print screen, IOL report, case report with picture, etc.

A scan
Resolution	0.01mm
Gain adjustable	0-120dB
Measurement range	12-43mm (1640m/s)
Accuracy	±0.02mm
Eye mode	normal / aphakia / dense cataract / PMMA, Acrylic & Silicon for Pseudo Phakic eyes

B scan
Scan mode	High accuracy stepping motor drive sector scan
Scan Angle	53°
Display Depth	0~56mm
Gray	256
Depth seletion	8
Image storage	100 frames permanent image storage

Standard Configuration	Optional Configuration
Main unit: 1 pc	Li-Battery
10MHz mechanical sector B probe: 1 pc.	Foot switch(Made in China)
10MHz A probe: 1 pc.	Foot switch (Import from USA)
Foot Switch:1pc	Gage block for calibration.
Internal Battery: 1pc
