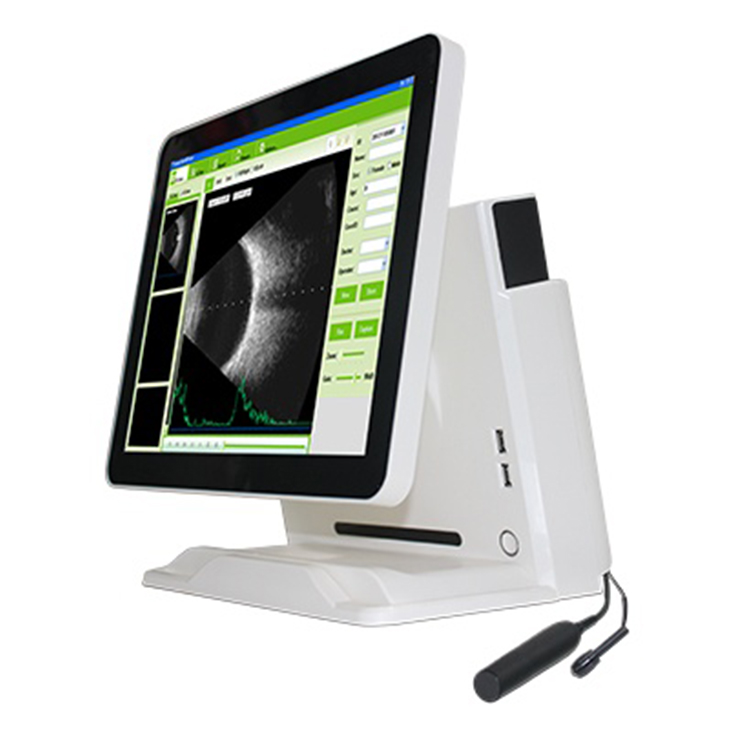

| SAB-500 A/B Scan with normal, vitreous body enhancement, retina observation mode, mainly used for diagnosis of intraocular diseases, display the location, shape range of the focus of infection and the relationship with the surrounding tissue. Can be diagnosed vitreous opacity, retinal detachment, eye base tumors etc. eye diseases. A scan is used to measure anterior chamber depth, lens thickness, axial length, calculate diopter of implant IOL as well. | |
| B scan: | |
| Frequency | 10MHz/20MHz (optional) ,Magnetic driven, noiseless |
| Scanning Mode | Sector Scanning |
| Magnify | Multi continuous magnification,Real-Time magnification |
| Resolution: | Lateral ≤0.3mm; Vertical≤0.2mm |
| Geometry position precision | Lateral ≤10%; Vertical≤5% |
| Depth | 60mm |
| Gain of probe | 30dB-105dB |
| Scanning Angle | 53° |
| Gray Scale | 256 |
| False Color | Multi colors. OCT |
| measurement type | multigroup distances, perimeters and areas |
| Image postprocessing | multiple curves processing, Pseudo-color processing curve |
| Movies | 100 images movie review, AVI JPG format image output |
| A scan: | |
| Frequency | 10MHz,with LED |
| Depth | 40mm |
| Precision | ±0.05 mm |
| Measurement | Anterior chamber depth, lens thickness, vitreous body length, total length and average |
| Eye mode | Phakic / Aphakic / Dense / Various IOL |
| IOL Formula | SRK-II, SRK-T, HOFFER-Q, HOLLADAY,BINKHORST-II, HAIGIS |
| Stat. Calculation | Average and standard deviation |
| Store | 10 Scanning results for each eye |
| Display Mode | B, B+B, B+A, A |
| Hint | preset keyword |
| Case Search | Multi-keywords |
| Screen | 15 inch LCD |
| Built-in battery | can use 4 hours |
