| Product Description | |

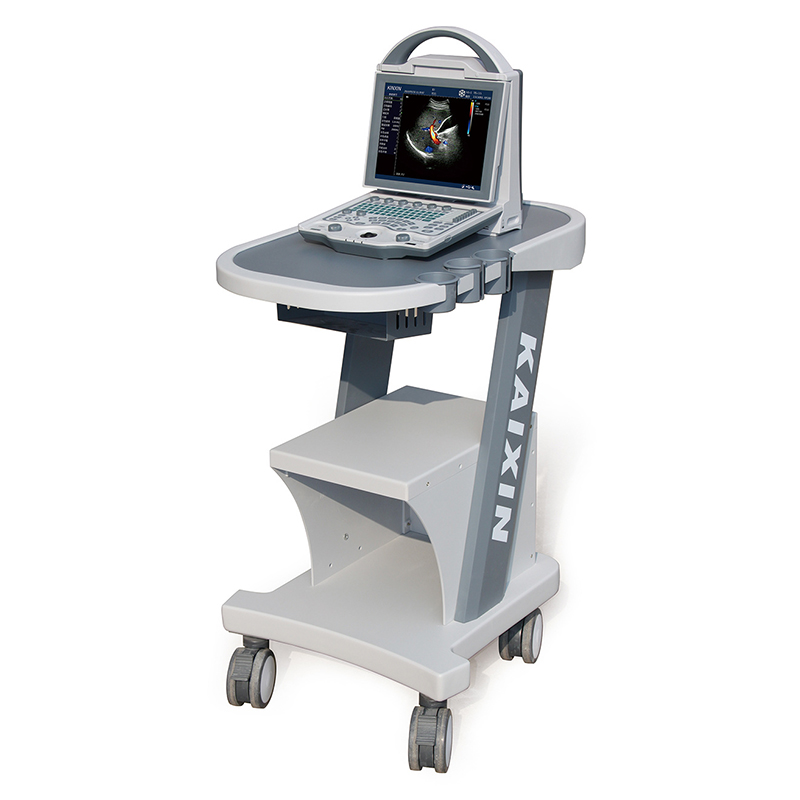

| Color Doppler Ultrasound Scanner 10.4’ high resolution color LED backlight display, with high contrast and wide viewing angle； Adopt ARM7 embedded control system +FPGA signal processing system + well selected ultrasound hardware system, all make the unit more stable. Menu operation system, with different languages according to requirement including Spanish, English, French, Russian and Portuguese； Two probe sockets, auto-identify different optional probe； Body marks：1.General 2. Bovine 3.Canine 4.Equine 5.Feline 6.Cardio 7. Swine, total 27 kinds body marks indicating probe position；Puncture guide function with 2 correctable puncture guiding lines(adjustable angle & position)； the gravel software package with real-time position line measurement Normal measurement: Distance, circumference, area (trochoid or ellipse), volume, etc. Cardio measurement：Depth, slope, heart rate, cycle； OB report function； One-key store: concise and practical; One-key review：fast, practical image review function; One-key Print； One-key Transfer the current frozen image to net workstation to complete its image text report and print directly; Concise and practical, easy operation. The system includes network workstation to complete data & report management (You don’t need to invest more to buy extra ultrasound working station)； | |
| Specification | |
| Tech Parameters | DCU12 Full Digital Color Doppler Ultrasound scanner |
| Display mode | B、2B、4B 、B/M、M/、CFM、PDI、PW、THI |
| Adjustable depth | 3. 32~252mm(35 grade) every probe has relative depth range and adjust grade |
| Gray scale | 256 |
| Color scale | 256 |
| Image storage | 4G hard disk to permanently store about 5000 frames images |
| Cine loop | 256 frames |
| Power supply | 100-240V～ 1.2-0.6A, 50-60Hz |
| Power supply adaptor output | DC12.8V 3.0A |
| Features | |
| 1.10.4” color LED full screen display, angle adjustable 2.One-key light function for black room use 3.Only 4.5kg, carry easily 4.One-key store image, one-key print report, one-key review image. 5.Preset parameter, user friendly 6. It can save and review video，image 7. 16G hard disk. | |
| Product Configuration | |
| Standard configuration | |
| Main unit:1 pc | |
| Two probe sockets, automatically identify probe； | |
| 3.5MHzmulti-frequency abdomen convex probe:1pc | |
| 7.5MHz multi-frequency high linear probe:1pc | |
| Reticle: 1pc | |
| Optional configuration | |
| 6.5MHz multi-frequency trans-vaginal probe:1pc | |
| 7.5MHz multi-frequency high linear probe:1pc | |
| Video printer（UP-898MD） | |
