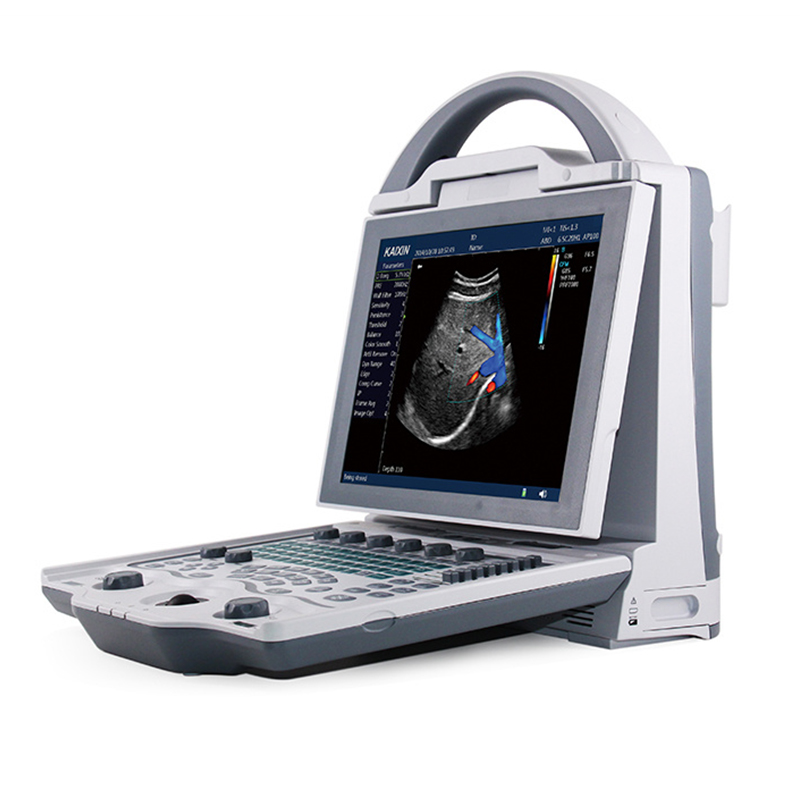

DCU12-V portable medical ultrasound instruments with probe

The product of time:2022-06-19 21:15:28

Description:

DCU12-V portable medical ultrasound instruments with probe...

Detailed introduction
Product Description
Color Doppler Ultrasound Scanner
10.4’ high resolution color LED backlight display, with high contrast and wide viewing angle; Adopt ARM7 embedded control system
+FPGA signal processing system + well selected ultrasound hardware system, all make the unit more stable. Menu operation system,
with different languages according to requirement including Spanish, English, French, Russian and Portuguese; Two probe sockets,
auto-identify different optional probe; Body marks:1.General 2. Bovine 3.Canine 4.Equine 5.Feline 6.Cardio 7. Swine, total 27
kinds body marks indicating probe position;Puncture guide function with 2 correctable puncture guiding lines(adjustable angle &
position); the gravel software package with real-time position line measurement Normal measurement: Distance, circumference, area
(trochoid or ellipse), volume, etc. Cardio measurement:Depth, slope, heart rate, cycle;

OB report function; One-key store: concise and practical; One-key review:fast, practical image review function; One-key Print;
One-key Transfer the current frozen image to net workstation to complete its image text report and print directly; Concise and
practical, easy operation. The system includes network workstation to complete data & report management (You don’t need to invest
more to buy extra ultrasound working station);




Specification
Tech ParametersDCU12 Full Digital Color Doppler Ultrasound scanner
Display modeB、2B、4B 、B/M、M/、CFM、PDI、PW、THI
Adjustable depth3. 32~252mm(35 grade) every probe has relative depth range and adjust grade
Gray scale256
Color scale256
Image storage4G hard disk to permanently store about 5000 frames images
Cine loop256 frames
Power supply100-240V~ 1.2-0.6A, 50-60Hz
Power supply adaptor outputDC12.8V 3.0A
Features
1.10.4” color LED full screen display, angle adjustable
2.One-key light function for black room use
3.Only 4.5kg, carry easily
4.One-key store image, one-key print report, one-key review image.
5.Preset parameter, user friendly
6. It can save and review video,image 7. 16G hard disk.




Product Configuration
Standard configuration


Main unit:1 pc
Two probe sockets, automatically identify probe;
6.5MHz micro-convex probe:1pc
7.5MHz multi-frequency linear probe:1pc
Reticle: 1pc


Optional configuration
6.5MHz Micro-Convex probe:1pc
7.5MHz multi-frequency high linear probe:1pc
6.5MHz linear rectal probe
